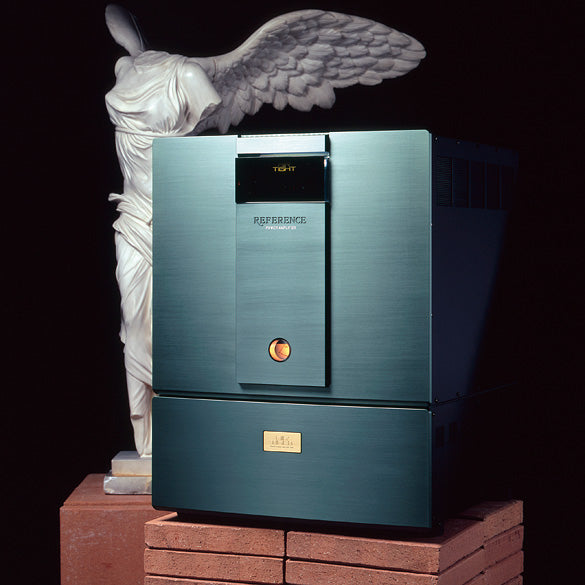

Air-Tight ATM-2001 Stereo/Mono

$70,00000

Availability: This product is available for purchase in-store only. Contact us for more information.

405-795-3462

info@referenceanalog.com





THE MAJESTIC

  • Comfortable high power thanks to colossal output stage featuring 12 pcs. of 6550 beam valve
  • Individually direct-coupled cathode-follower to ensure an optimum operation of each output valve
  • Massive power supply employing huge EI power transformer
  • 2 independent amps thus composed in UL configuration afford rich high power without load on each component
  • Lavish employment of strictly select components of high performance & long durability
Valves employed:
6550 × 12, 12BH7× 6, 12AX7× 2, 12AU7 × 2
Rated output:
338W(8 ohms, mono) / 180W(8 ohms,stereo)
THD:
less than 1% at rated output
Frequency response:
20 - 20,000Hz( 1dB)
Input impedance:
100k ohms
S/N ratio:
100dB
Dimensions:
power supply; 430(W) ×185(H) ×500(D)mm
amplifirer; 430(W) ×380(H) ×520(D)mm
Weight:
65kgs(power supply),50kgs(amplifier)
