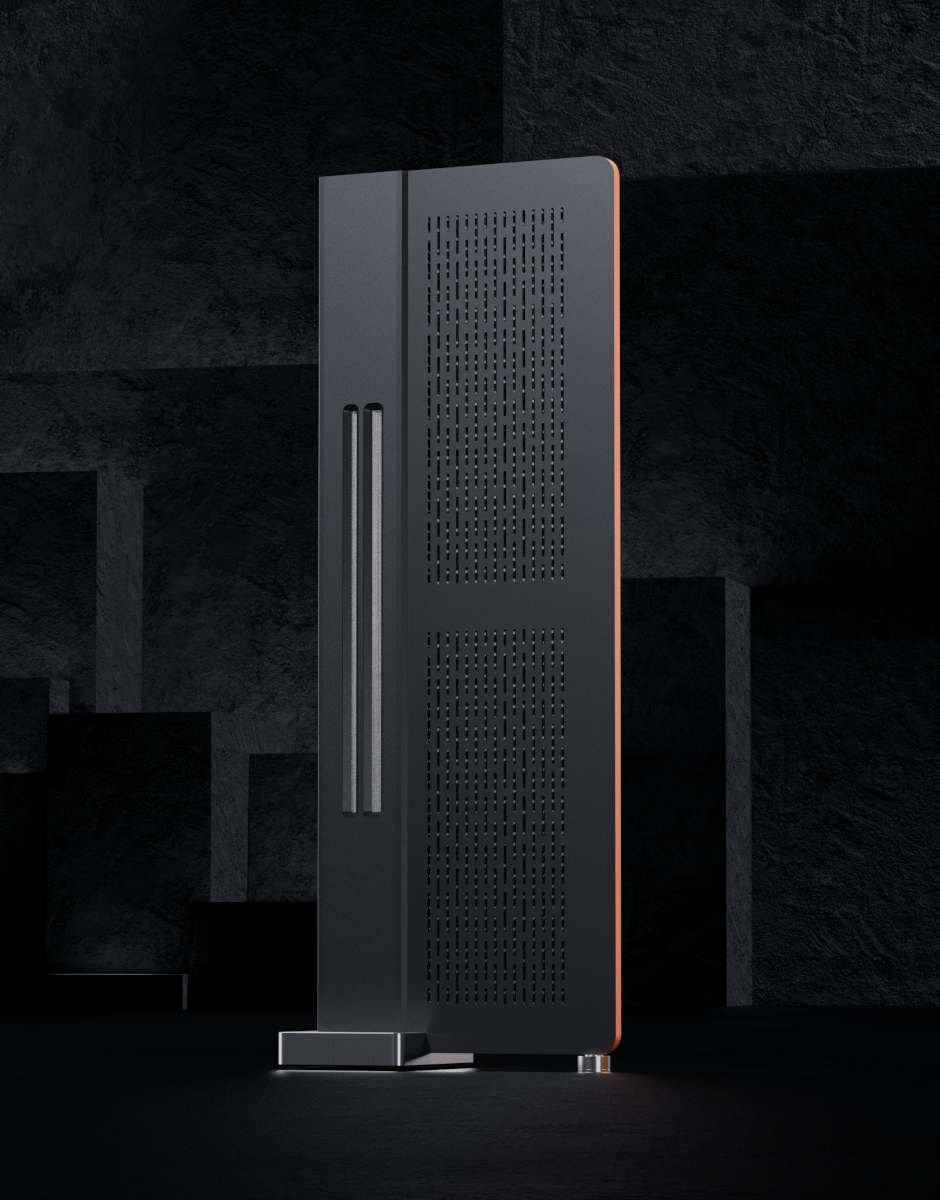

Diptyque Reference Speakers
We have run out of stock for this item.
In March 2020, during the first COVID 19 containment, everything stopped but our imagination! In this suspended time, we dreamed of an ultimate loudspeaker, without compromise, capable of reproducing the entire spectrum from infra-bass to ultrasound with all the naturalness, speed and transparency that only isodynamic technology is capable of reproducing with perfect consistency. As a sign of providence, at the same time, we received a phone call from Philippe Teissier du Cros, a fabulous sound engineer who has been practicing his art for many years with our favourite musicians. We asked him to accompany us in this ambitious project, to which he responded with enthusiasm! The specifications for the diptyque reference were born out of our questions and passionate exchanges. We questioned all the existing technical solutions, and in particular to obtain powerful and controlled low frequencies down to the infra-bass. Our research and innovation work led us to develop a totally new technology that we have patented: the "Crossed Push pull".
Each bass cell is driven by two independent coils (set of ribbons), one vertical and one horizontal. This exclusive technology allows the 12 µm mylar membrane to be set in vibration by hundreds of small square motors. The "crossed push-pull" technology allows to control the vibrations of the membrane without deformation. This guarantees very linear low frequencies, without distortion and with much greater efficiency than existing isodynamic systems.
For the midrange section, we developed a new 20mm isodynamic ribbon that covers a wide spectrum from 600 to 7000 Hz and for the high frequency section, a super tweeter in pure aluminium of 8mm that goes beyond 24000 Hz.
From the very first listening, Philippe Teissier du Cros and our music lover friends were subjugated by the realism of the sound reproduced by the diptyque reference. We have made our dream come true !
SPECIFICATIONS |
|
Type | 3.5 ways |
Sensitivity | 89db/1W/1m |
Impedance | 4 Ohms |
Bandwidth | 22 - 24000Hz |
Power handing |
300W recommended amplifier > 60 W |
Dimensions (h,w,d) | 1800x650x45 mm |
Weight |
82KG |
