HANA UMAMI BLUE MC CARTRIDGE
$2,50000
HANA UMAMI BLUE MC CARTRIDGE is ordered from manufacturer upon request.
This product is in stock

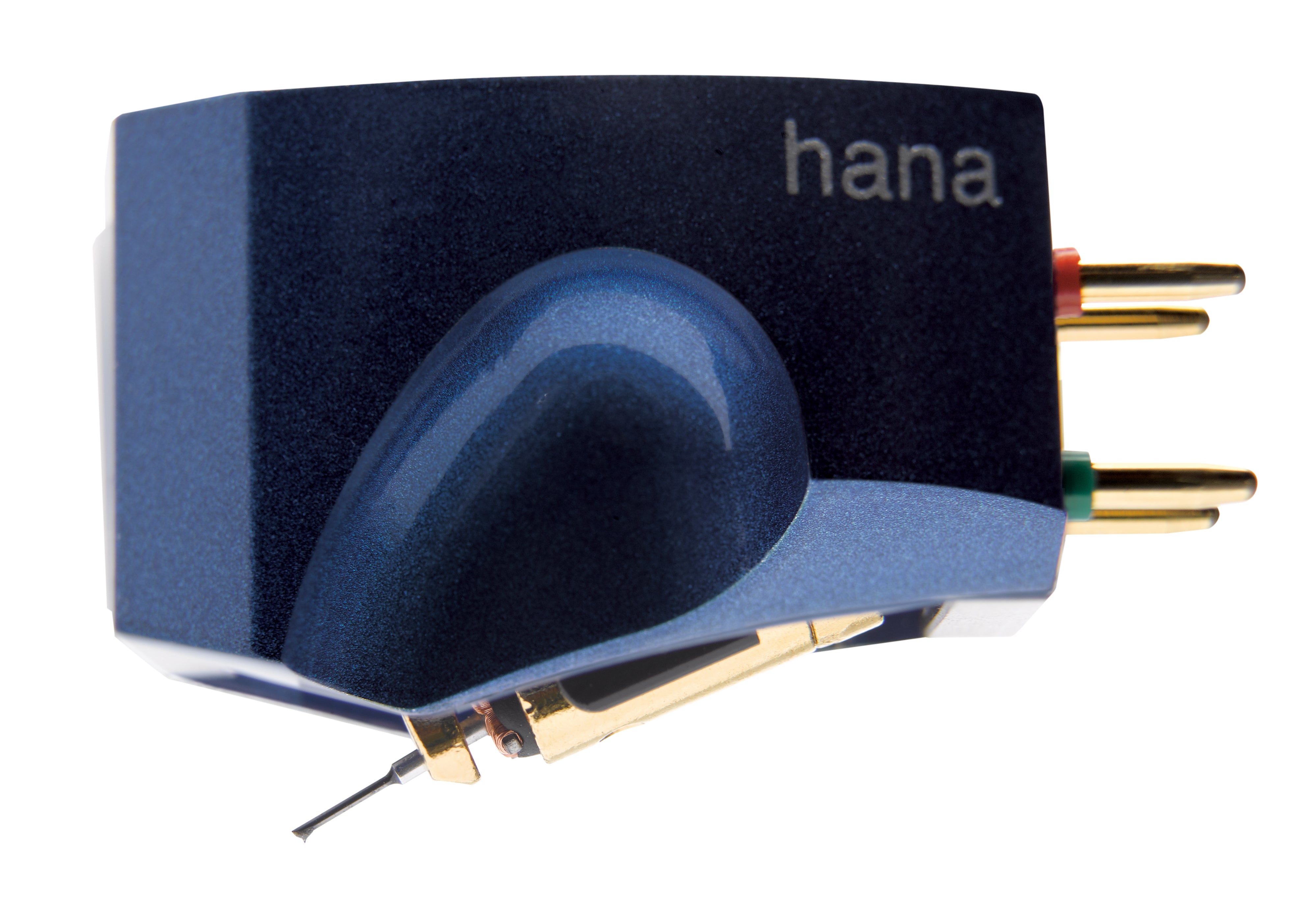

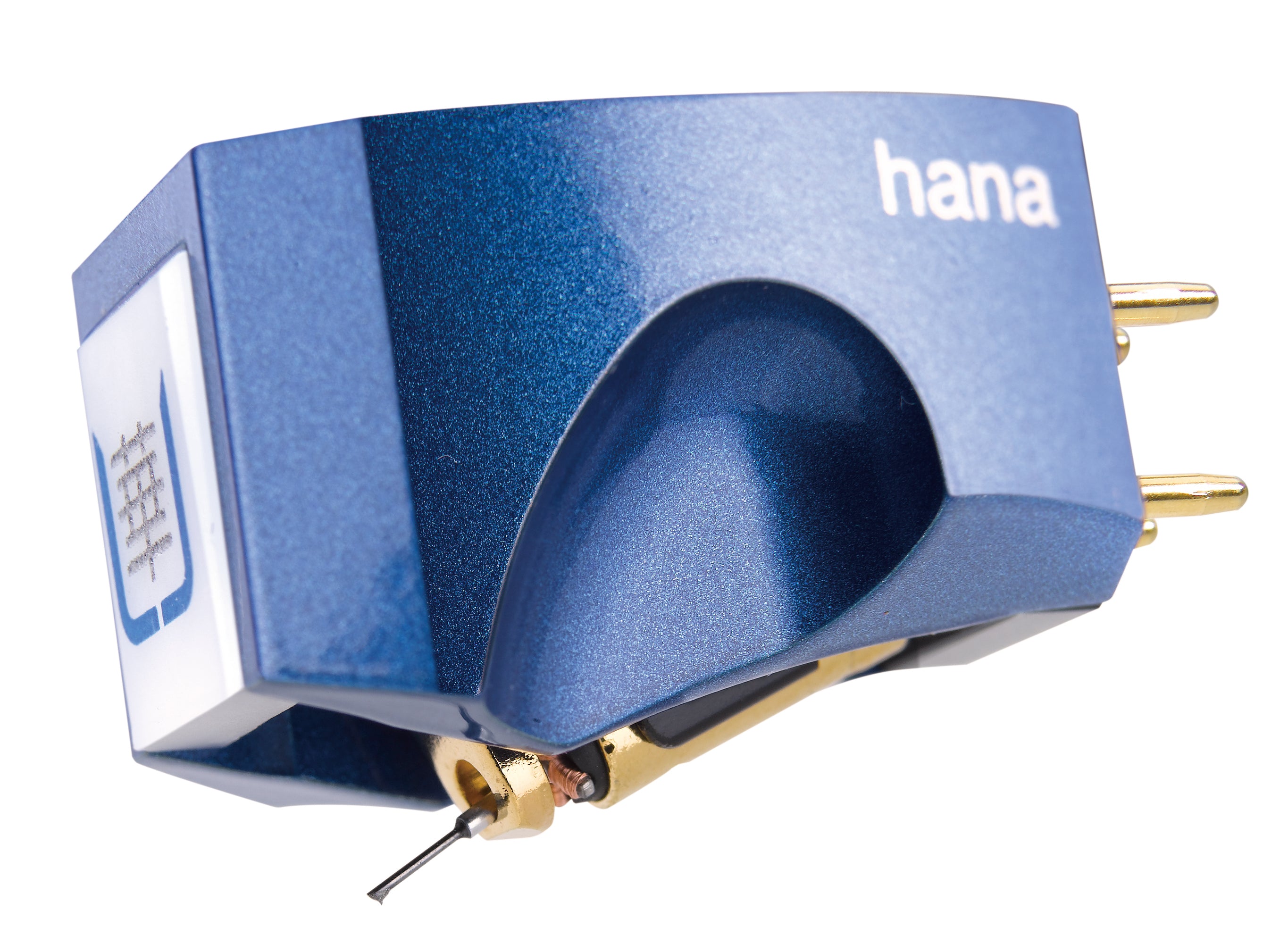

The HANA-Umami Blue high-end moving coil cartridge from Excel Sound’s Master cartridge designer Maseo Okada-san uses special materials, classic Japanese techniques, and modern audio engineering.
The HANA-Umami Blue cartridge follows in the Hana “Brilliant and Gorgeous” tradition of providing the listener with sublime enjoyment. Embodying the true sense of synergy, the HANA-Umami Blue combines the essential ingredients of the HANA-Umami Red with the ALNICO based generator of the HANA ML.
The HANA-Umami Blue incorporates the AuricleTM body design, unique and exclusive to our Umami series. CNC machined from Duraluminum, it uses a special Melamine Thermosetting Process (MTP), enameling the body with a brilliant blue glossy finish. Sharing other key Umami Red ingredients, including the precision-cut Microline diamond stylus, Boron cantilever, and high-purity copper wires, the Umami Blue synergizes these specialized parts with the ALNICO magnet-based generator used in the Hana ML.
• “Auricle” open-air body design machined from Duraluminum A7075 • MTP enameled finish with POM inlay
• Microline stylus with Boron cantilever
• ALNICO (aluminum / nickel / copper) magnet
• Cross-coil core with high purity copper coils
• 8Ω Coil impedance with .4mV output
• Cryogenic treatment of key generator parts and output pins
Umami Blue Moving Coil Cartridge Specification (230101) (*) | |||
Body | Material | Duralumin (A7075) | |
Finish | Melamine Thermosetting Process (MTP) | ||
Cantilever Assy | Cantilever | Boron | |
Stylus | Microline Nude Diamond | ||
Magnetic Circuit | Armature material | Permalloy | |
Amature Shape | Cross Plate | ||
Parts material | Pure Iron | ||
Magnet | Alnico (Al-Ni-Co) | ||
Output Pins | 24K Gold Plated | ||
Coil | Coil impedance | 8Ω | |
Output | 0.4mV | ||
Coil Wire Material | High Purity Copper | ||
Load impedance | >80Ω | ||
Treatment | Cryogenic | Front York,Rear Yoke,Pole Piece,Terminal Pins | |
Specification | Frequency Response | 15-50,000Hz | |
Output Balance | 0.5dB/1KHz | ||
Channel Separation | 30dB/1KHz | ||
Tracking Weight | 2g | ||
Trackability | 70μm/2gr | ||
Dynamic Compliance | 10x10(-6)cm/dyne(10Hz) | ||
Estimated at 17x10(-6)cm/dyne at 10Hz | |||
Cartridge Weight | 10.8g | ||
