Kaleidescape Compact Terra
$4,99500
Custom order item, not avalible for online purchase.
Terra Movie Servers
Terra and Terra Prime® movie servers store Kaleidescape movies, TV series, and concerts. Kaleidescape movies are downloaded asynchronously and then played back from local storage. This enables playback with full fidelity, irrespective of internet connectivity.
Kaleidescape movies are played back on Strato movie players. Standalone Strato players contain a limited amount of local storage. But when they are grouped with Terra, the internal storage is disabled, and the full Kaleidescape experience is enabled, including the list view and iconic cover shuffle view, which look and work better with larger movie libraries.

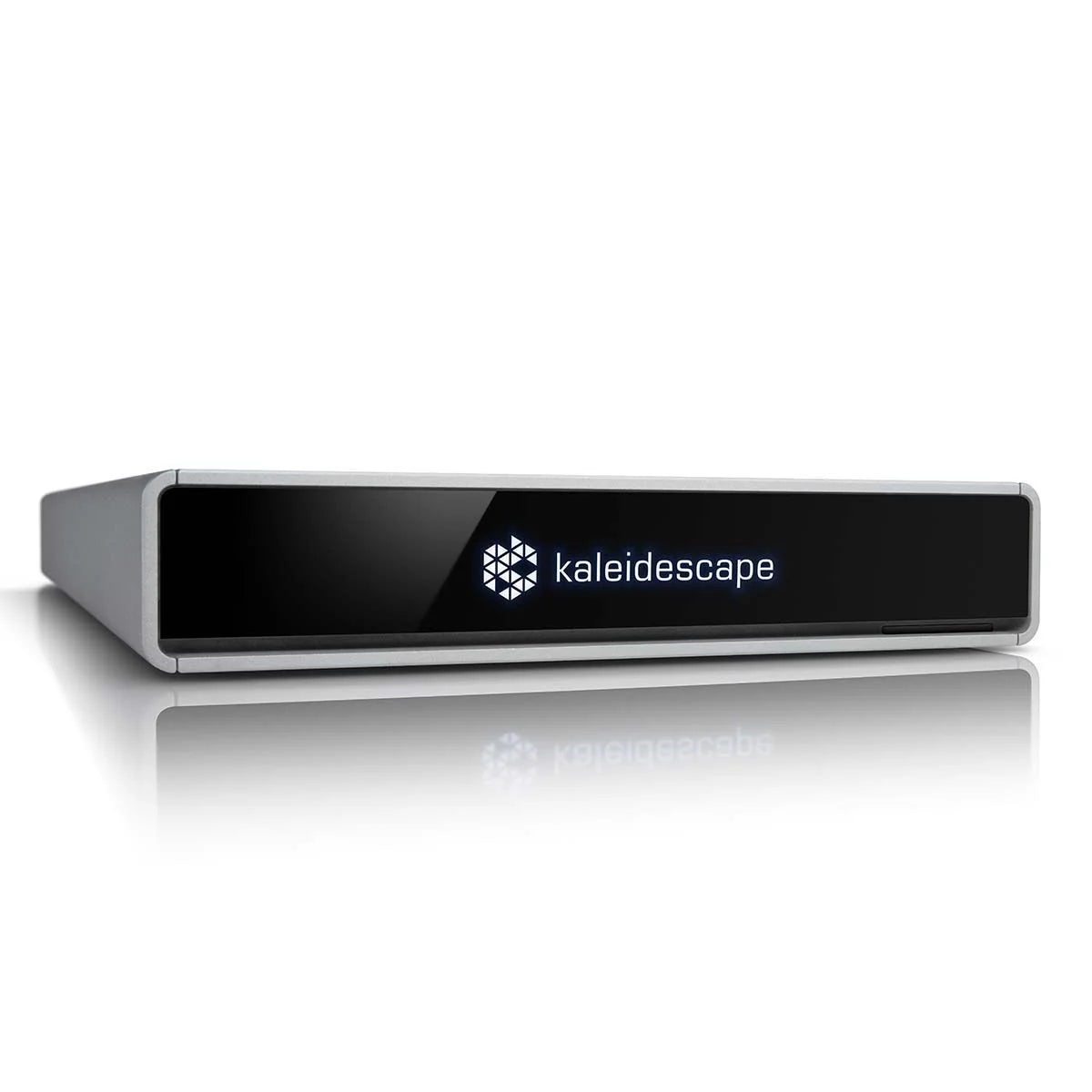

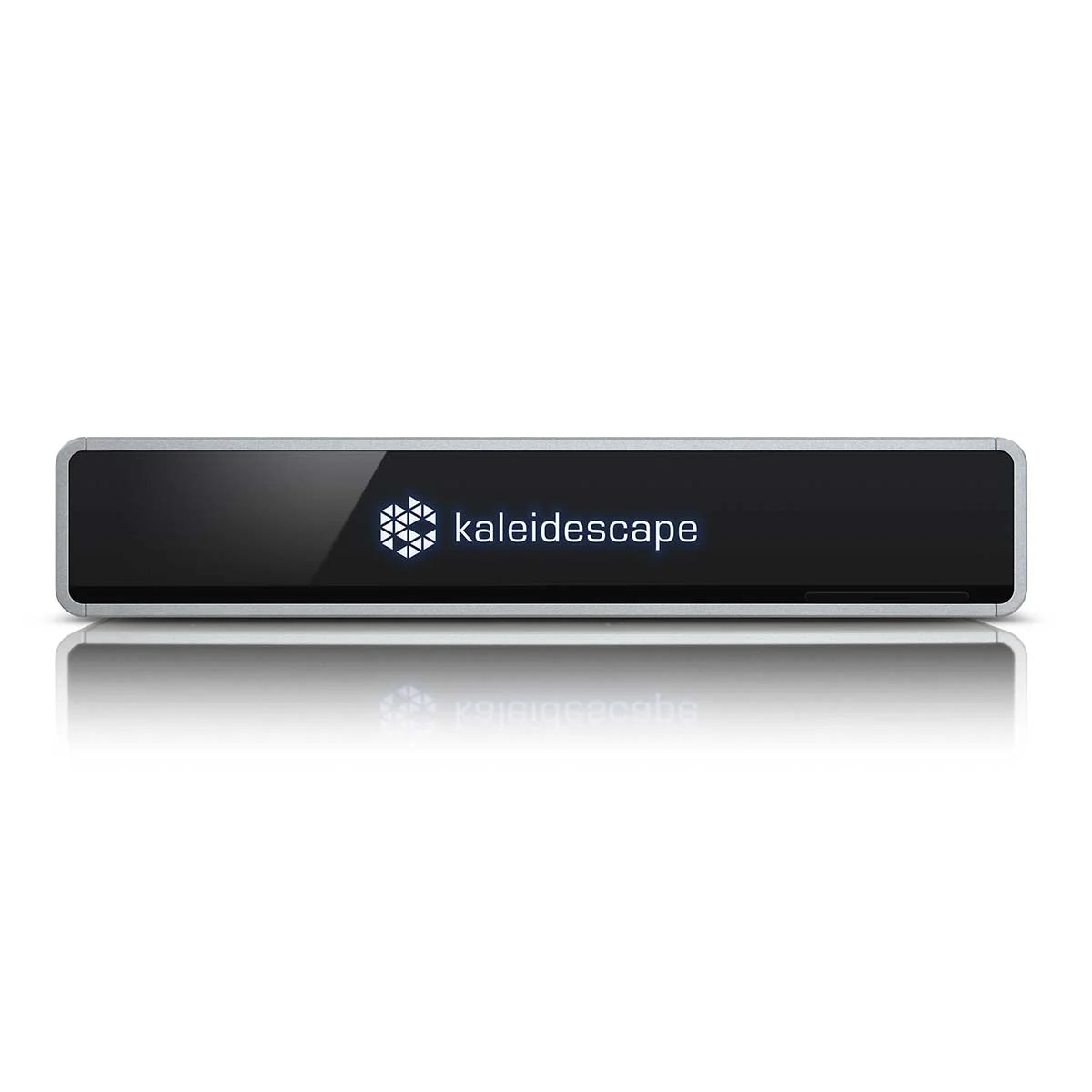

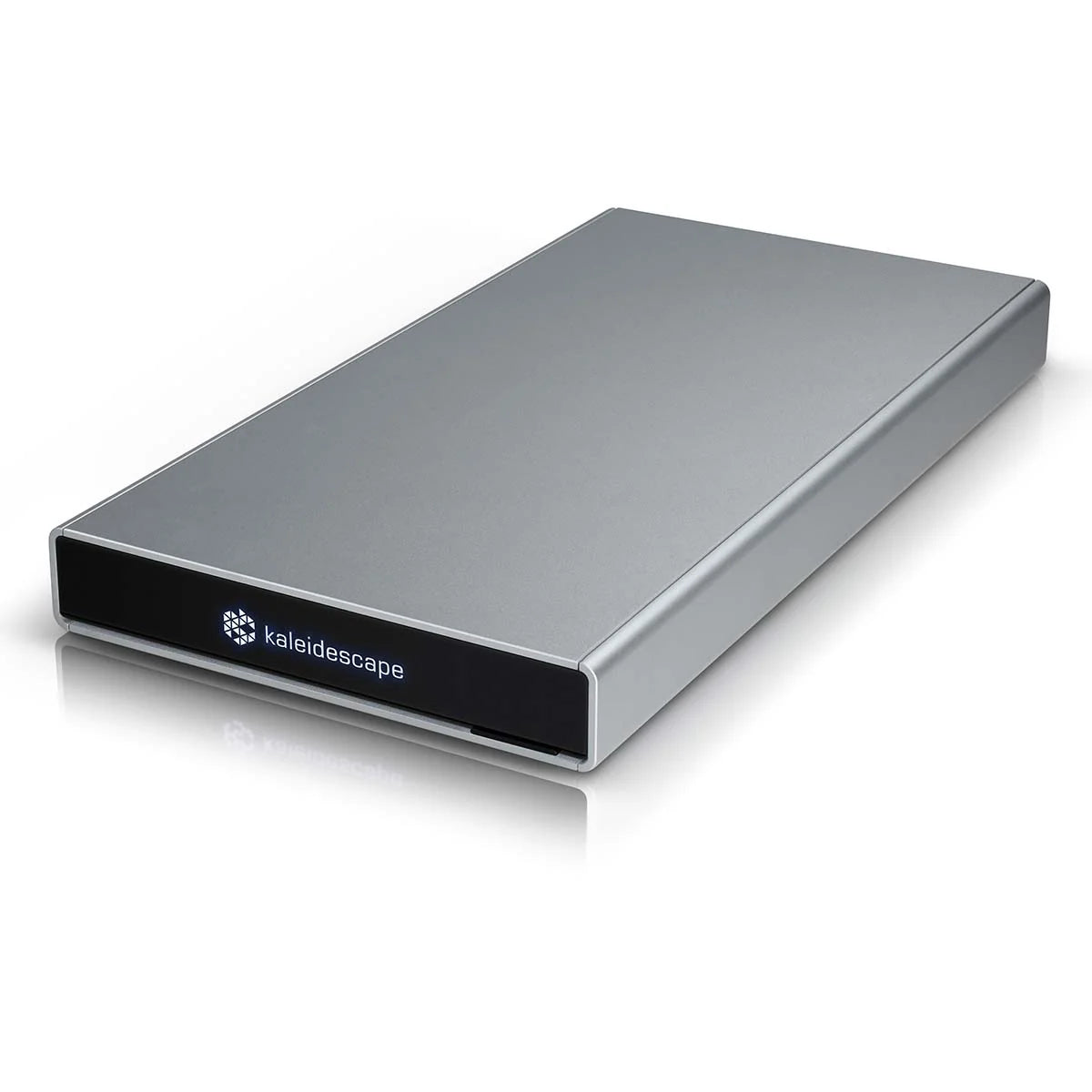

The compact Kaleidescape Terra is available with 30TB or 8TB of storage. Up to four compact Terras can be combined in a single system for more storage.
Technical Details & Specifications
COLOR
- Silver anodized aluminum
DOWNLOAD SPEED
- Downloads Kaleidescape high-bitrate 4K movies in as little as 10 minutes
SIMULTANEOUS PLAYBACKS
- Serves simultaneous playbacks of Kaleidescape high-bitrate 4K movies to the following number of network-attached Strato movie players:
- Compact: 5
- Full Size: 10

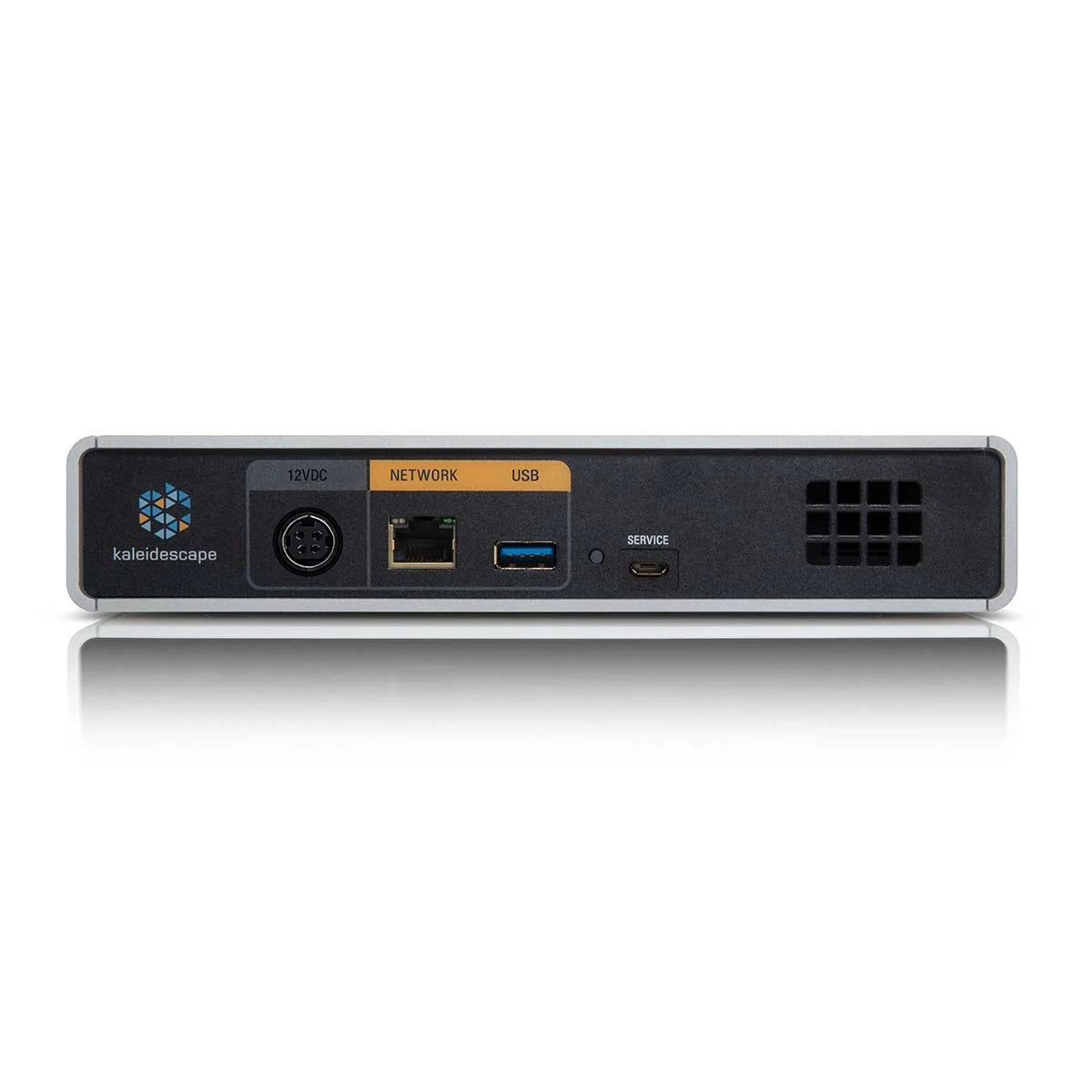

NETWORK
- Ethernet cable link required
- 1 Gigabit
OTHER CONNECTION
- USB 3.0 (reserved)
EXTERNAL POWER ADAPTER
- 2.6×1.4×6.5in (6.6×3.5×16.5cm) 150W with detachable line cord 100-240V, 50-60Hz universal input 12VDC @ 12.5A
DIMENSIONS
-
Full Size: (W x H x D)
17.0in x 3.5in x 10.0in
(43.2cm x 8.9cm x 25.4cm) -
Compact: (W x H x D)
7.87in x 1.52in x 14.33in
(20.0cm x 3.9cm x 36.4cm)
WEIGHT
-
Compact:
7.2lbs (3.3kg) -
Full Size:
15.4lb (7.0kg) with no drives installed
21.6lbs (9.8kg) with four hard drives
DRIVES
-
Compact:
One integrated hard disk drive -
Full Size:
Four removable hard disk drives
ENVIRONMENT
- Operating: 50 to 95°F (10 to 35°C)
- Storage: -4 to 140°F (-20 to 60°C)
- Relative humidity:
20 to 80% (operation)
5 to 90% (storage) - Maximum operating altitude:
10,000ft (3,048m)
VENTILATION
- Airflow:
Full Size: 10 CFM (17 m3/hr) max
Compact: 5 CFM (8.4 m3/hr) max - Minimum 1in (2.5cm) space at the front
- Minimum 2in (5cm) space at the rear
POWER
-
Compact:
Max consumption: 32W
Typical: 20W -
Full Size:
Max consumption: 45W
Typical: 40W
CERTIFICATIONS
- CSA 62368-1
- IEC 62368-1
- FCC CLASS B
- CE
- RoHS Compliant
- AU/NZ Regulatory Compliance Mark (RCM)
MOVIE STORAGE
-
8K & 4K Cinematic:
~9.4 movies per TB -
4K Resolution:
~16.5 movies per TB -
HD Resolution:
~27 movies per TB -
SD Resolution:
~150 movies per TB
STORAGE OPTIONS
-
Compact:
8TB, 30TB
RACK MOUNTS (Sold Separately)
-
Full Size:
Rack shelf available for mounting one unit in a 19in rack, 2RU space -
Compact:
Rack shelf available for mounting one or two units in a 19in rack, 1RU space
