Moon by Simaudio 791 Network Player / Preamplifier
$16,00000
We have run out of stock for this item.
Please Call/Email to order - Item Not Available for Online Purchase
405-795-3462

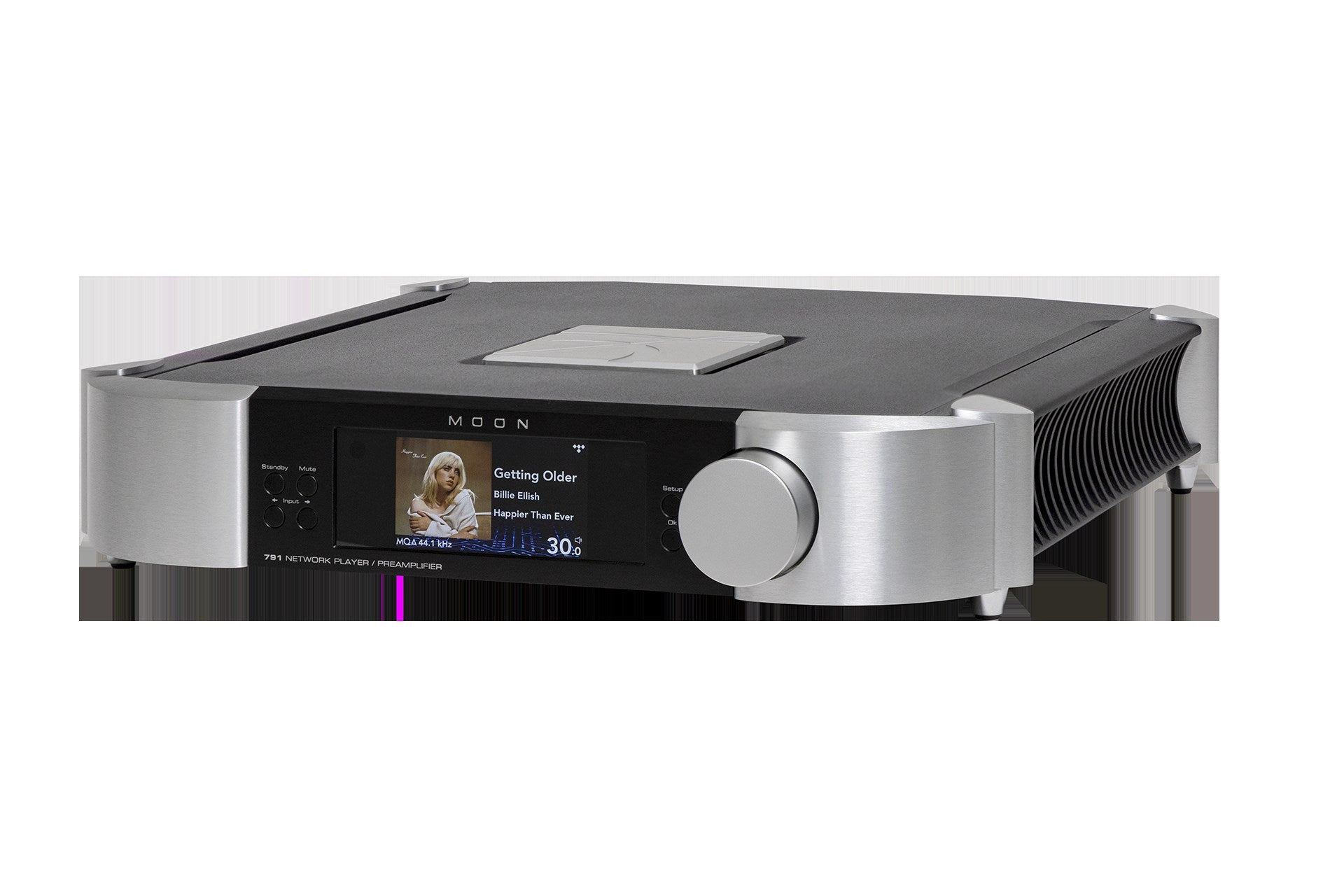

The MOON 791 is much more than a preamp. It combines a high-end phono stage and streaming DAC in a state-of-the-art analog preamplifier.
Design features
-

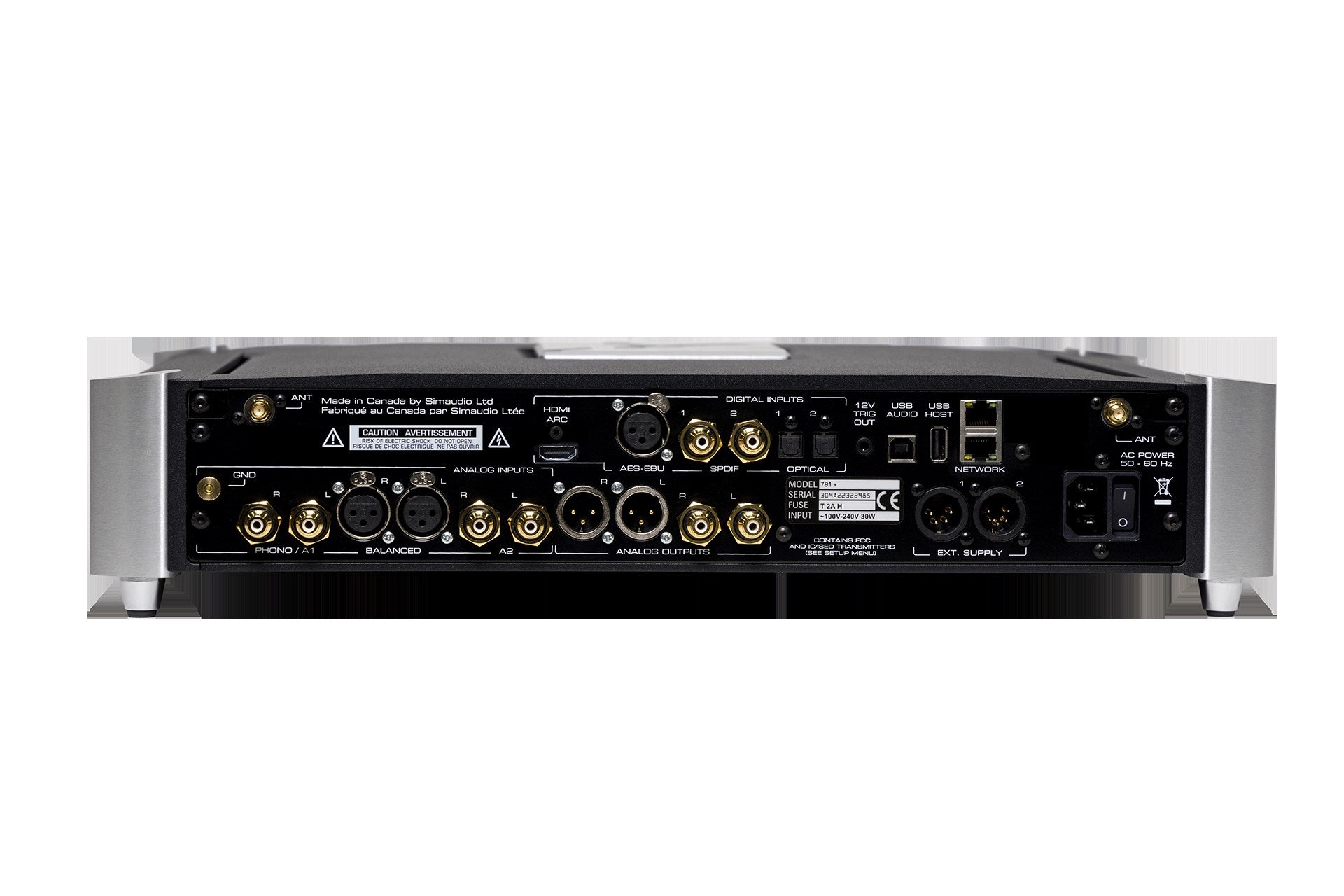

6 Digital Inputs
-
1 HDMI with ARC
-
3 Analog Inputs
-
MM/MC Phono Stage
-
MiND2 Module
-
MDE-2 DAC Technology
-
M-VOL3 Volume Control
-
Fully-Balanced Configuration
-
4.3” Graphic Colour Display
Specifications
-
Analog Input Impedance22 kΩ
-
Maximum Gain (Line Level)10 dB
-
Phono Input Gain40 dB / 54 dB / 60 dB / 66 dB
-
Phono Input Capacitance0 / 100 pF / 470 pF
-
Phono Input Resistance10 Ω / 100 Ω / 1 kΩ / 47 kΩ
-
Output Impedance50 Ω
-
Crosstalk–125 dB
-
Frequency Response2 Hz – 200 kHz (+0 dB / –3 dB)
-
Signal-to-Noise Ratio (Analog Preamplifier)120 dB
-
Dynamic Range (Digital Input, Fixed Output)125 dB
-
Total Harmonic Distortion + Noise0.0004%
-
Intermodulation Distortion0.0003%
-
Power Consumption (Idle)25 W
-
Power Consumption (Full Power Standby)22 W
-
Power Consumption (Low Power Standby)5 W
-
Shipping Weight41 lbs / 19 kg
-
Dimensions (width x height x depth)18.95 x 4.03 x 17.66 in
48.1 x 10.2 x 44.9 cm
