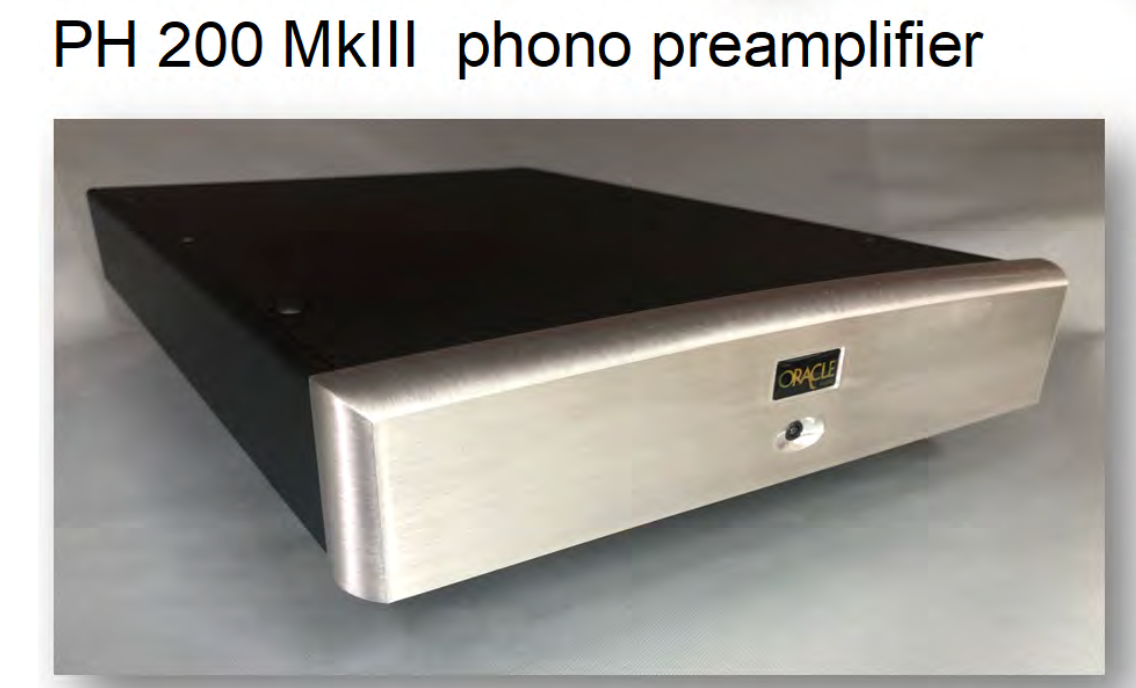

Oracle Audio Paris PH200 phono pre-amplifier

$2,00000

Oracle Audio Paris PH200 phono pre-amplifier - Textured Black is ordered from manufacturer upon request.

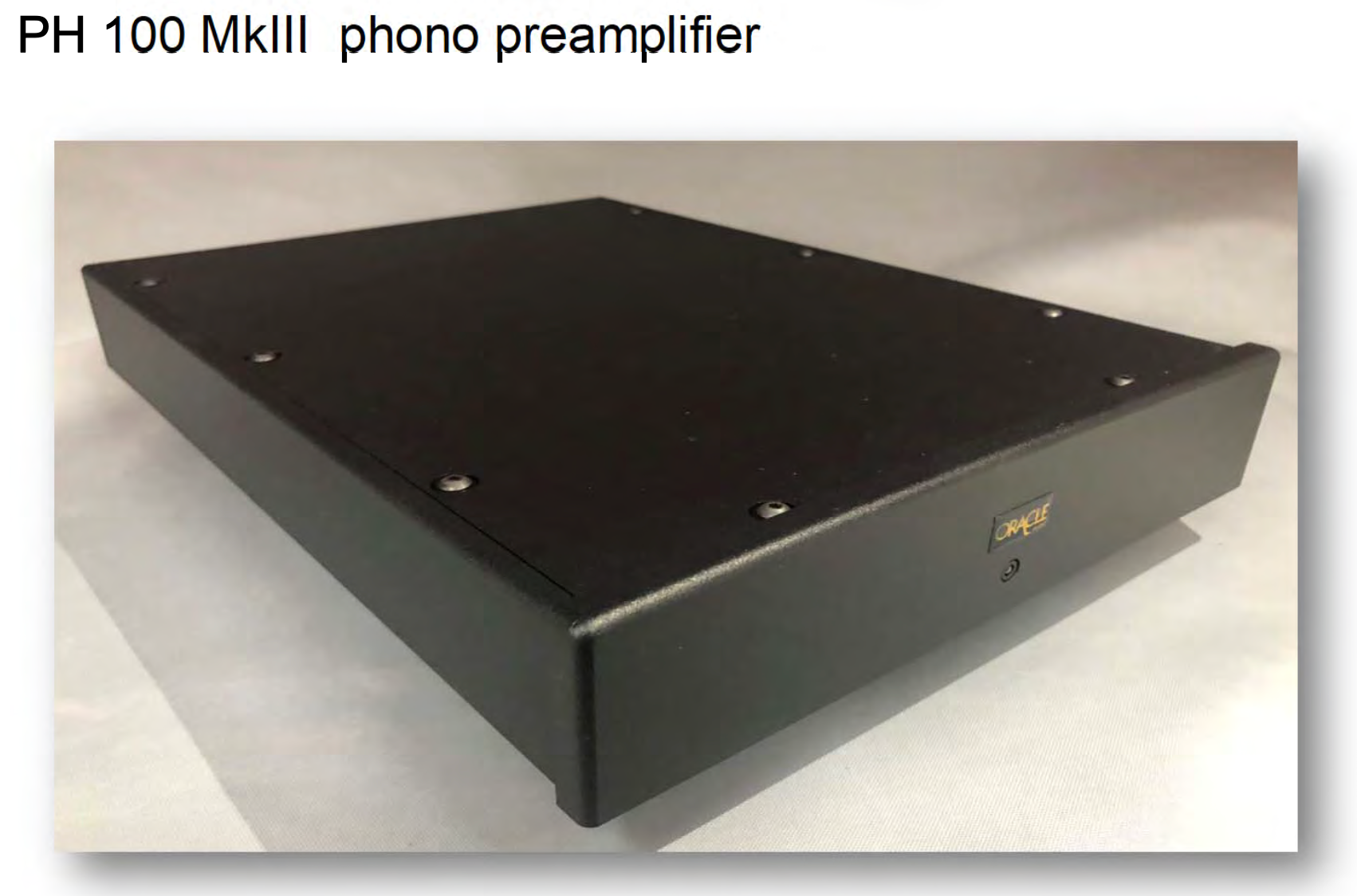

  The Paris PH200 distinguishes itself from the PH100 as it is equipped with an additional signal regulation step located just before the RIAA circuit input and also by the usage of higher quality operational amplifiers on the analog amplifying modules further improving the sound. The last of these distinctions and not the least is the usage of a highly regulated and filtered external power supply. Extreme care and attention has been applied to eliminate the electrical line noise before it can access the Paris phono stage circuitry. The PH200 has been designed to accommodate usage of both moving coil and moving magnet phono cartridges. The PH200 offers variable moving coil cartridge load settings and variable gain using jumper configurations on both the left and right channels. The different values of load impedance and gain that are possible are listed on the technical specifications page of the PH200. The Paris PH200 will bring you to a re-discovery of your record collection and will provide countless hours of enjoyable and satisfying musical experience!



Specifications

Moving Coil (MC) input impedence :           100Ω, 200Ω, 511Ω, 1kΩ, 1.5kΩ and 47kΩ



Moving Magnet (MM) input impedence :   47kΩ



Input capacitance (moving magnet)             150pF



Input sensitivity :                                              0,2mV and up



Gain MC :                                                            41.5db, 52db, 62db



Gain MM:                                                            must be set at 41.5 dB when set for MM with 47kΩ



Signal to noise ratio :                                        > -80dB



Dimensions :                                                       9.5"  x 12.25" x 2.25"
