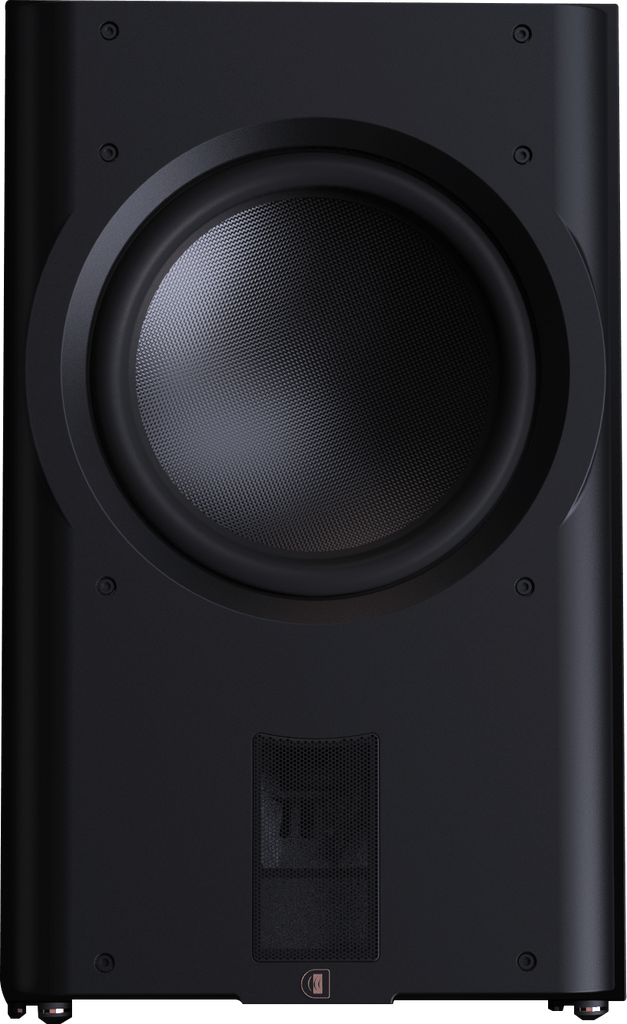

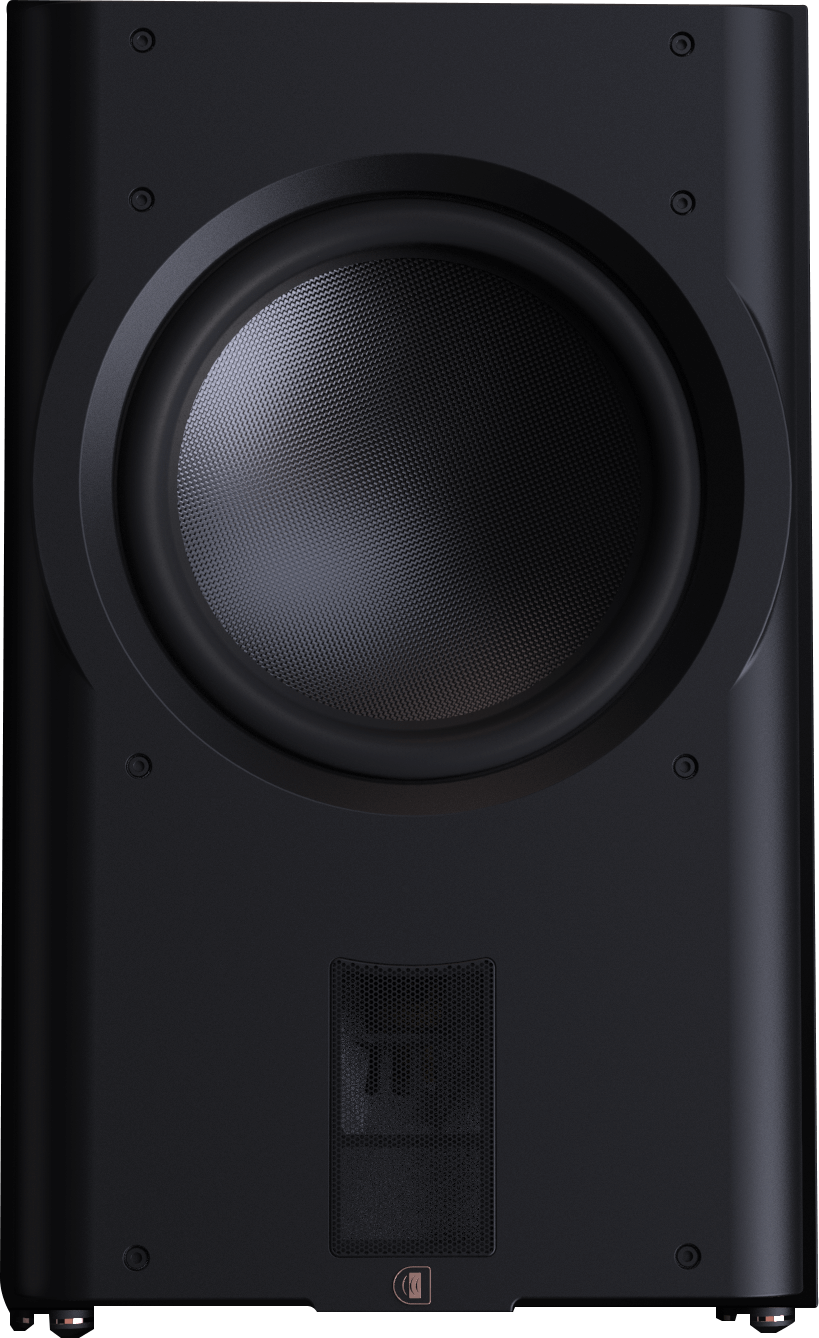

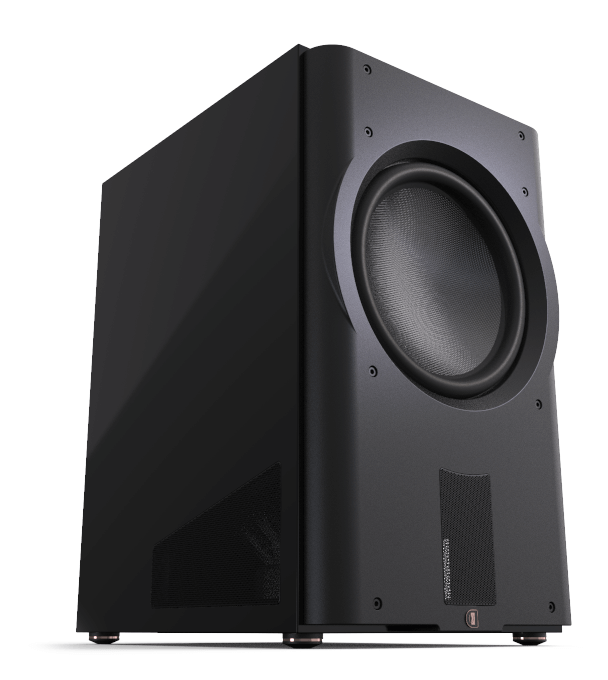

Perlisten Audio D215s Subwoofer
Perlisten Audio D215s Subwoofer - Black is ordered from manufacturer upon request.
The D215s is a new paradigm in accuracy, elegance, and style. Massive amounts of output is not the only mark of a flagship subwoofer, and Accuracy versus output is no longer a decision you will have to make, because you can now have both. The true metric of a subwoofer is not just being loud, but having the dynamic range plus ultra low distortion to create the subtlety of every detail of the bass guitar, to the 12Hz stomp of that T-Rex. Innovative technology such as an 3kW smart amp with a 32 bit ARM core, iOS and Android app to control up to 8 subwoofers, a 2.4” TFT touchscreen, and a dual woofer Push-Pull configuration for extremely low distortion. This monster can dance as effortlessly as a ballerina or crush frequencies well below 20Hz.
The Mark of a Push Pull design
Every parts of this woofer was computer optimized to ensure every speck of performance was achieved and then validated with advanced test equipment like Klippel. Starting with the tuning of the massive 60mm peak linear excursion, spider compliance, and magnetic motor curve. The two woofers are then mounted on a massive 80mm front baffle and operated in a push pull configuration utilizing cancellation of the 2rd order harmonics to further reduce distortion. Every step of the way ensuring the best low frequency experience you can have.
3.0kW of Intelligence
At the core of our amps is a 32 bit ARM processor to control innovative technologies like real time temperature status, current and voltage monitoring, fault detection, and performance diagnostics evaluated at more than a 1000 times a second. All of this to make sure that our 3kW amplifiers are always in control even well below 20Hz. In addition we have dual balanced and un-balanced inputs with pass through, 12v trigger, and OTA firmware updates through our APP to always get the latest improvements. The end result is low distortion bass for the finest details with the dynamic range to meet the highest transients without compression and control at the click of button.
APP control
Bass management is critical to control the notoriously difficult acoustic environment known as your listening room. Standing waves, subwoofers in an imperfect position, and sound variation from seat to seat are only some of these issues. Control for up to 8 subwoofers with each woofer having 3 banks of 10 PEQ’s, Time Delay, Phase, up to 6 standard EQ’s, 24dB low-pass crossovers, and polarity, are all tools available to optimize your room performance. Our APP uses Bluetooth Low Energy to communicate with your iOS or Android based devices.
| Alignment | Push-Pull, acoustic suspension |
| Amplifer | 3.0kW rms short term |
| Display Interface | 2.4" LCD color touchscreen |
| App | iOS and Android |
| Processor | 32-bit ARM Cortex M4, double precision floating point math |
| DSP Engine | Ti DSP 48-bit data paths |
| Driver compliment | (2)380mm, Carbon fiber diaphragm +/-30mm linear excursion |
| Reference sensitivity | 92dB / 150mV / 1.0m |
| Frequency Response THX EQ Boost (Large Room) EQ Cut (Small Room) EQ |
20-200Hz (-6dB) / 16-210Hz (-10dB) 15-200Hz (-6dB) / 13-210Hz (-10dB) 24-200Hz (-6dB) / 18-210Hz (-10dB) |
| Inputs | (2) Balanced XLR (2) Unbalanced RCA |
| Outputs | (2) Balanced XLR unbuffered (2) Unbalanced RCA unbuffered |
| Parametric EQ | 10-Band PEQ with 3 user presets |
| Low Pass filter | Bypass, 30-160Hz, slope 6,12,18,24dB/oct |
| Phase | Variable 0-270 |
| Polarity | Normal / inverted |
| Configurable Auto turn-on and 12v Trigger | XLR 1, XLR 1+2, RCA 1, RCA 1+2 |
| Dimensions (HxWxD) | 805 x 500 x 650.5mm 31.7 x 19.7 x 25.6" |
| Weight | 92.0 kg (202.4 lbs.) |
| Certification | THX Dominus |
| Available finishes | Piano black |
