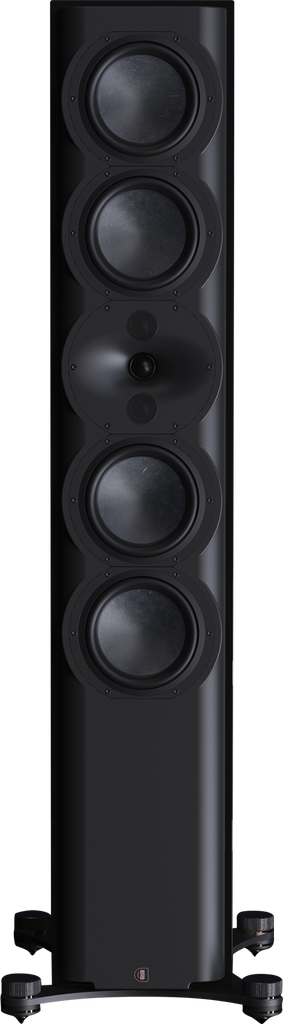

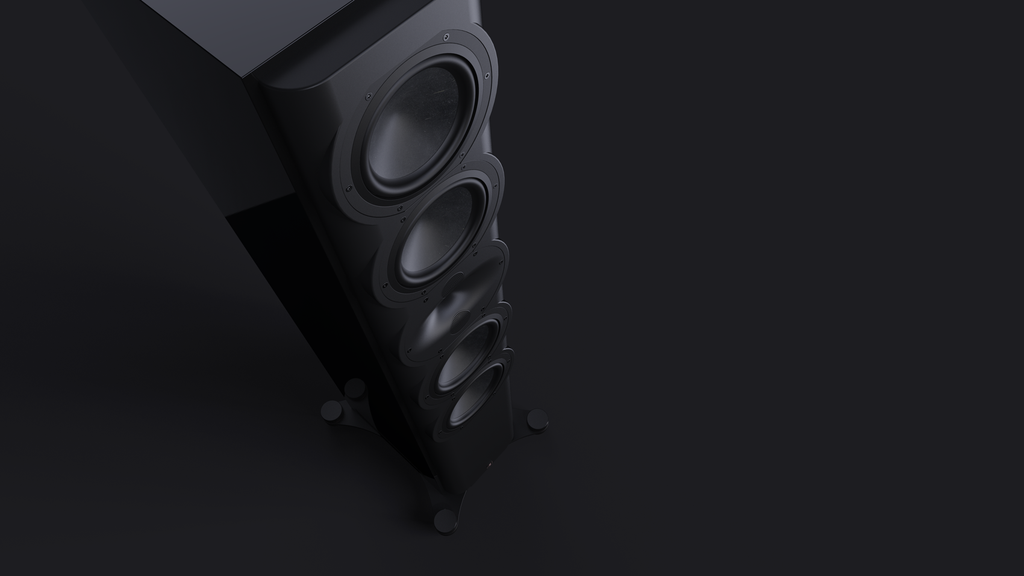

You asked and we delivered. You wanted a flagship R-series to fill larger rooms based on the trickle down technology from the S-series. The second best 2 channel system in our line up still rivals most competitor’s flagship. Stressing the same DPC array and long excursion woofers for extremely low distortion and controls directivity down to 500Hz makes this a full range masterpiece only rivaled by our own award winning S7t.

IT'S ALL IN THE DETAILS

Designed as a stand alone 2ch high fidelity speaker with the versatility to be used as part of multi-channel systems. Sharing “trickle-down” technology from our flagship S-Series, the DPC-Array here based on three 26mm domes, guarantees excellent directivity control and timbre matching with all R-Series speakers. The Silk diaphragms developed ground up, chosen specifically their smooth, effortless representation of midrange and treble. The 165mm woofers are made from our proprietary HPF pulp, two years in development, bringing new technology to one of the oldest materials used in loudspeaker design. The R7t can be aligned as bass reflex or acoustic suspension depending on specific tastes. Rich, dynamic bass matched with advanced mid/treble directivity pattern control and silky highs offer best in class performance.
Enclosure alignment 4-way bass reflex / acoustic suspension
Driver compliment DPC Array:
26mm(3) Silk dome
Woofers:
165mm(4) HPF diaphragms
Sensitivity 90.0dB/2.83v/1.0m
Impedance 4Ω nominal/3.1Ω min
Response Linearity 80 - 20kHz +/-1.5dB window
Frequency Response (-10dB) Bass reflex: 27-32kHz
Acoustic suspension: 38-32kHz
Typical in room bass extension Bass reflex: 19Hz
Acoustic suspension: 30Hz
Dimensions (HxWxD) 1268x230x350mm
49.9x9.0x13.7"
Weight 48.0 kg (105.6 lbs.)
Recommended Amplifier Power 100-400W RMS
SPL capability (100-20kHz) 116.0dB peak <3%-2nd, 3rd Harmonics
Certification THX Dominus
THX Ultra
Available finishes Piano black
