Used - MSB S500 stereo amplifier
$35,00000
$72,50000

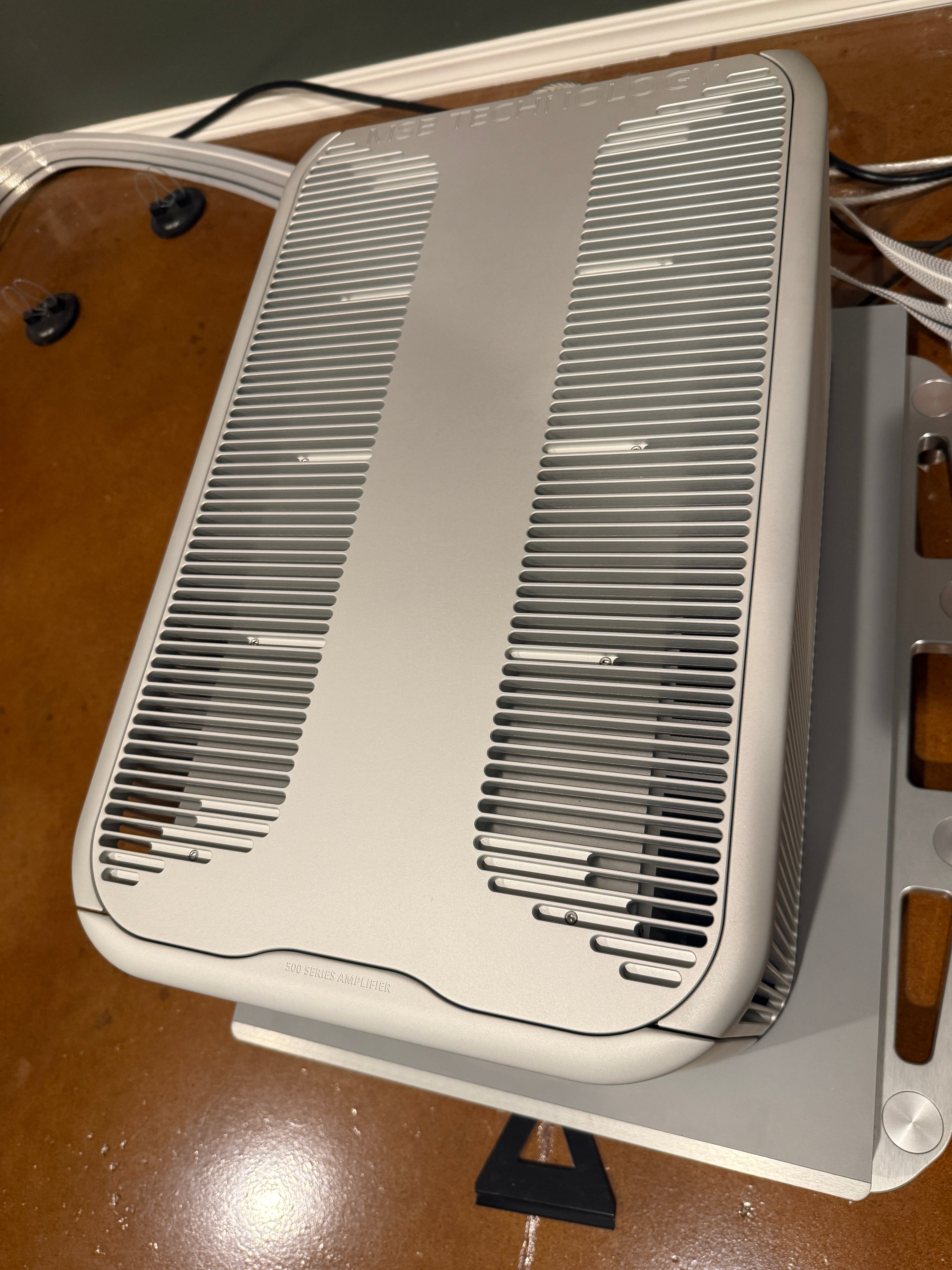

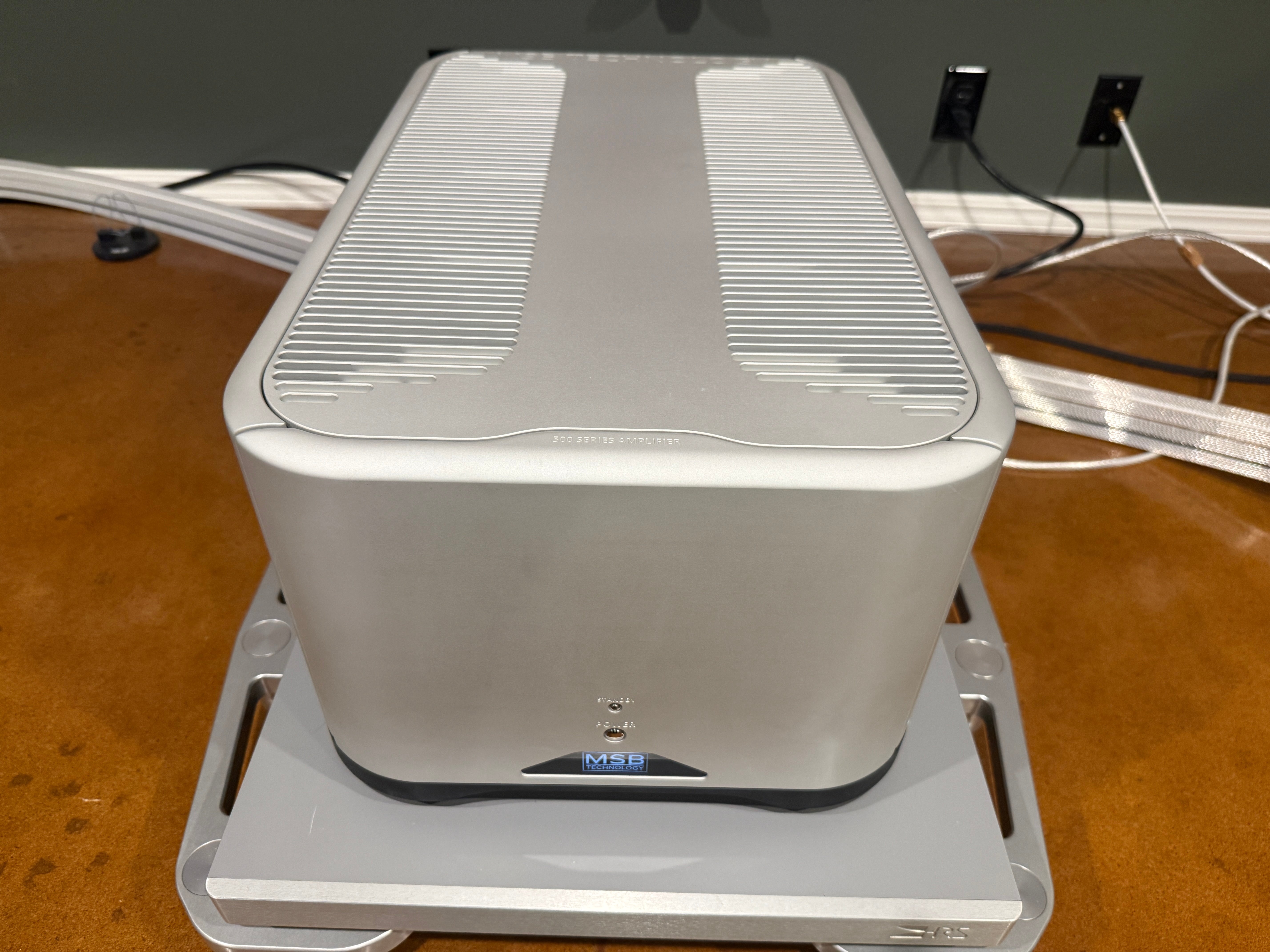

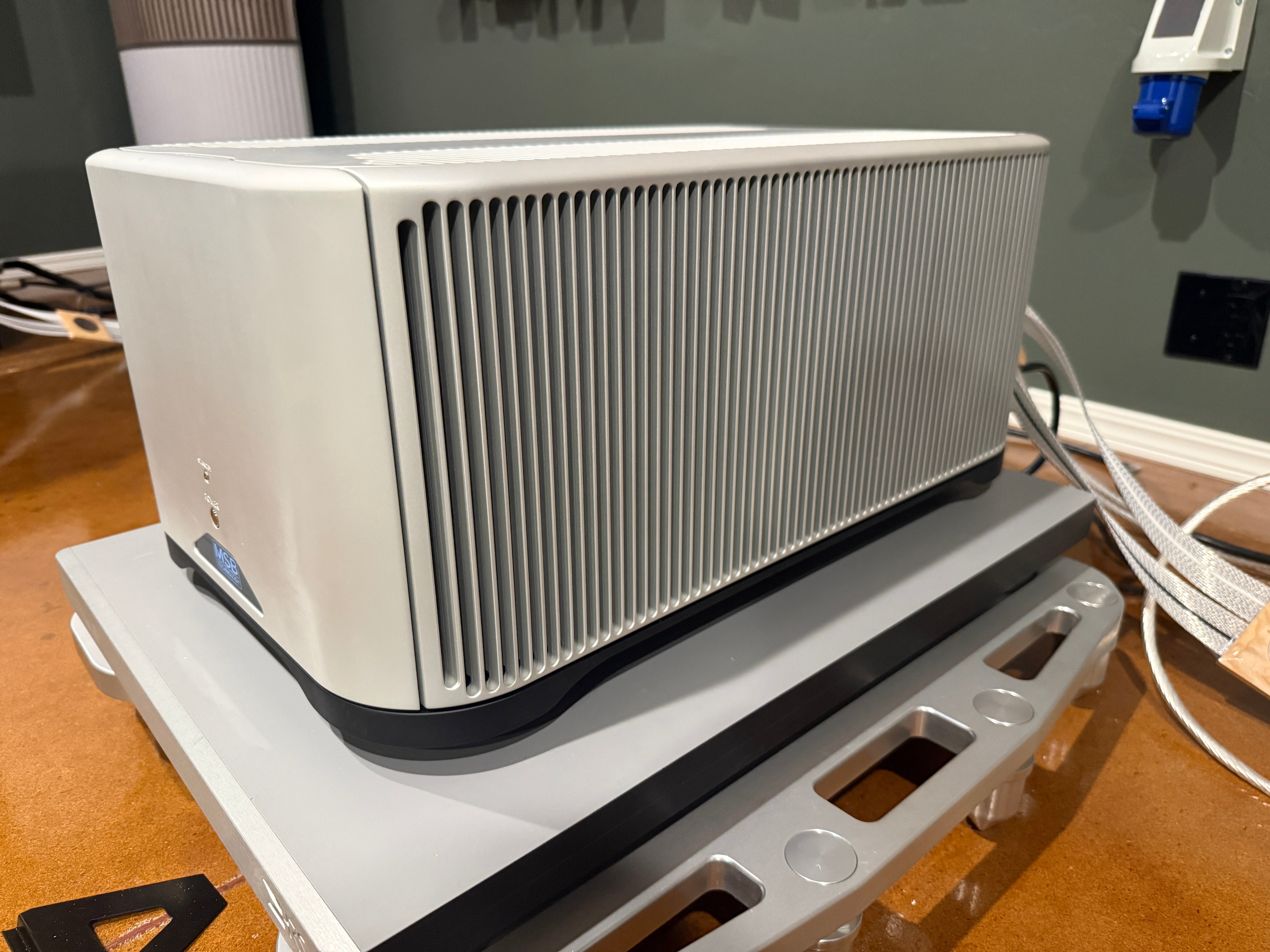

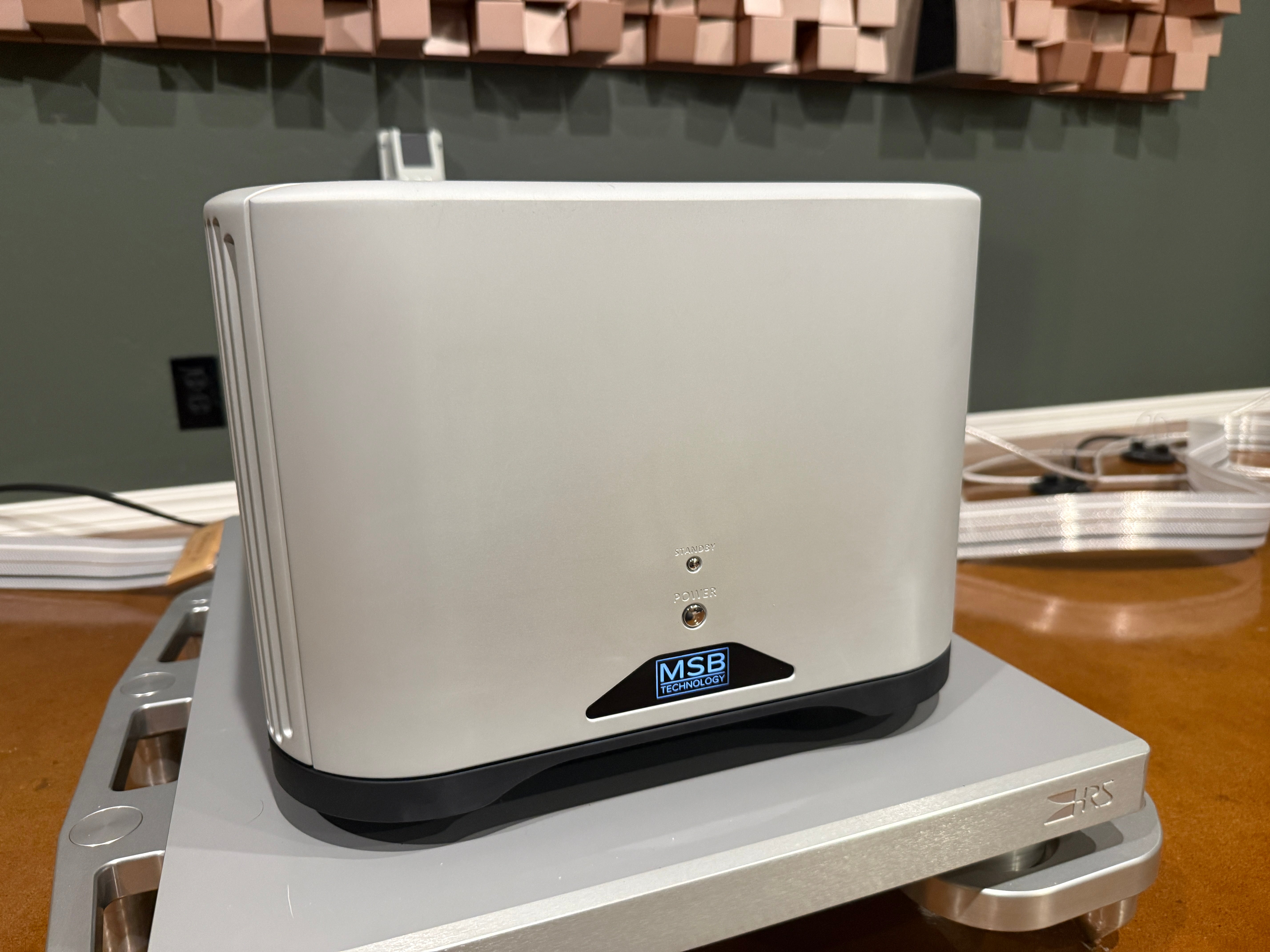

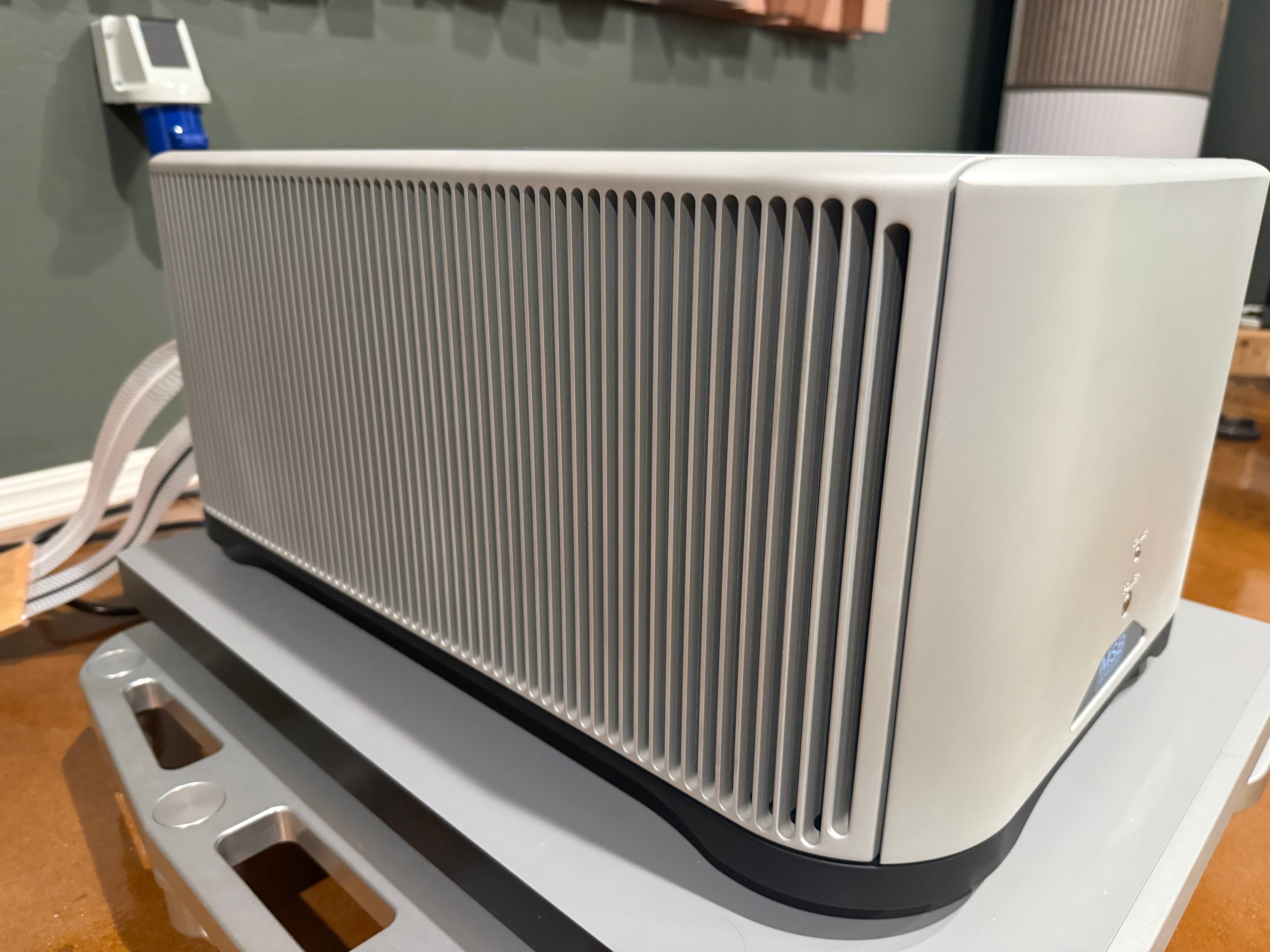

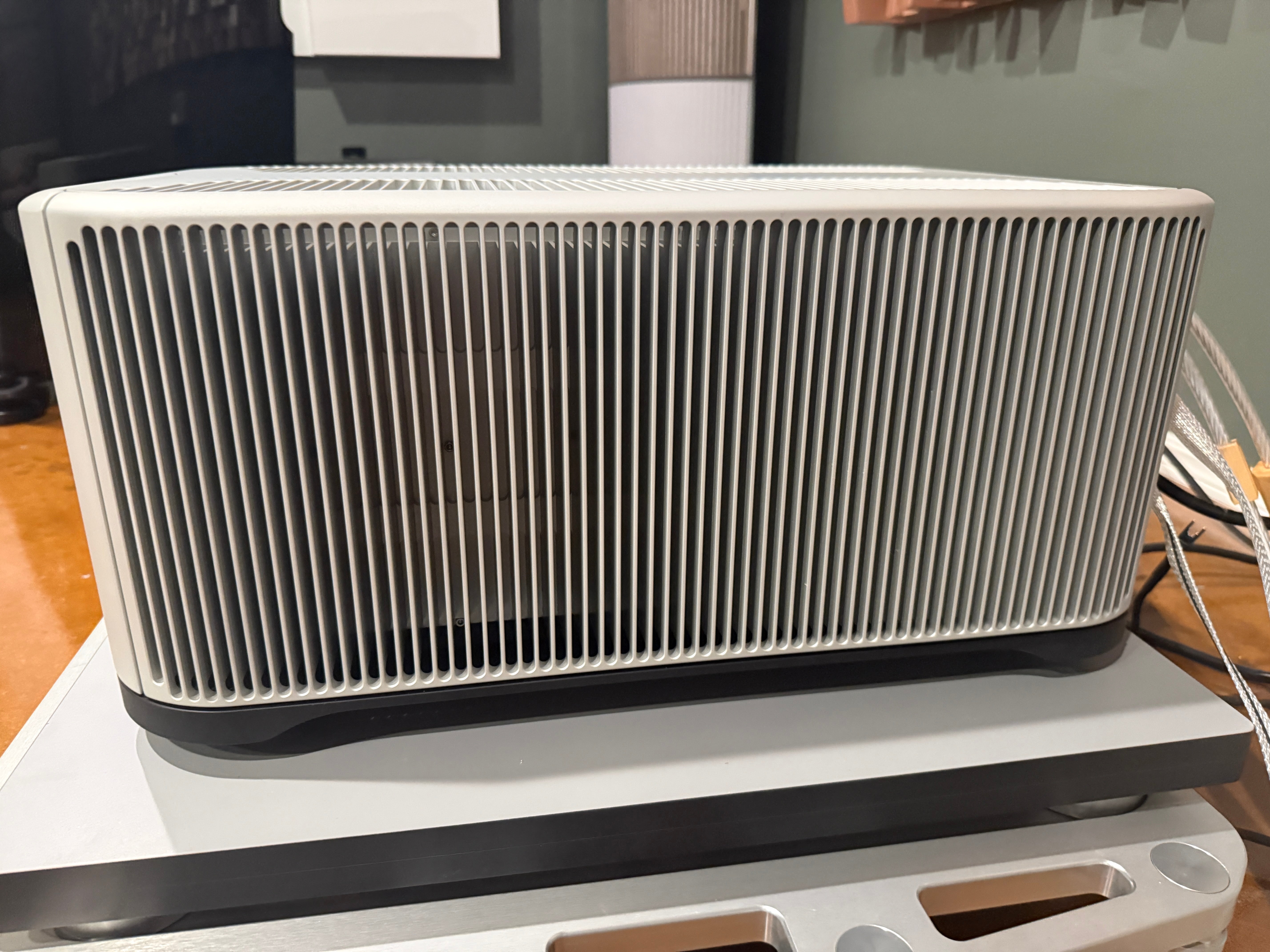

Selling an excellent condition MSB S500 Stereo amplifier. Ships in manufacture crate, comes with power cable and manual.
The S500 Stereo Amplifier |
|
|---|---|
| Technical Specifications | |
| Static Power Consumption | 270 Watts On Standby power less than 2 watts |
| Operating Voltage Range | 100V or 105-130V/210-260V configured at the factory. |

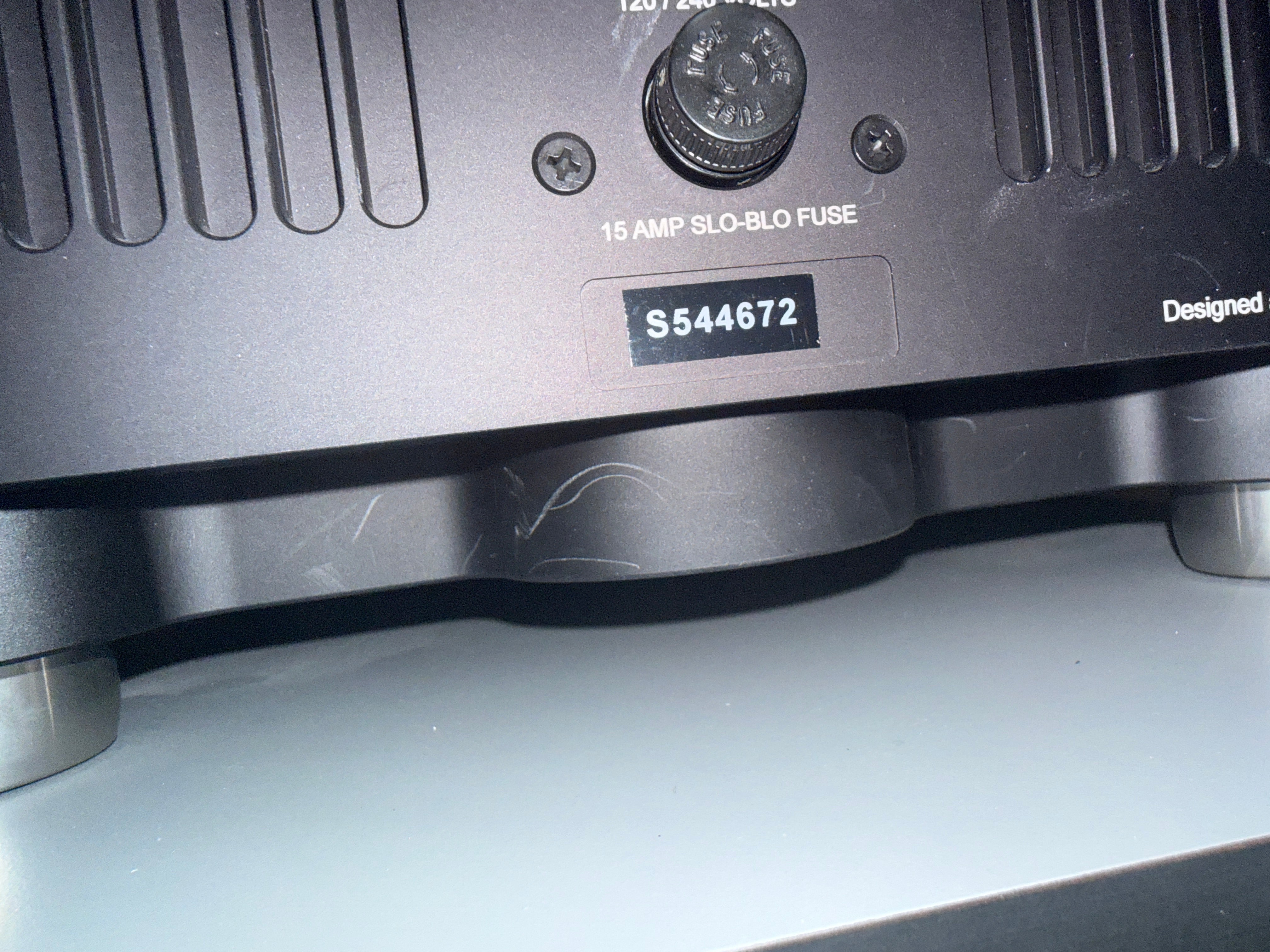

| Fuse | 1/4"x1-1/4" 15A 250V Slow Blow |

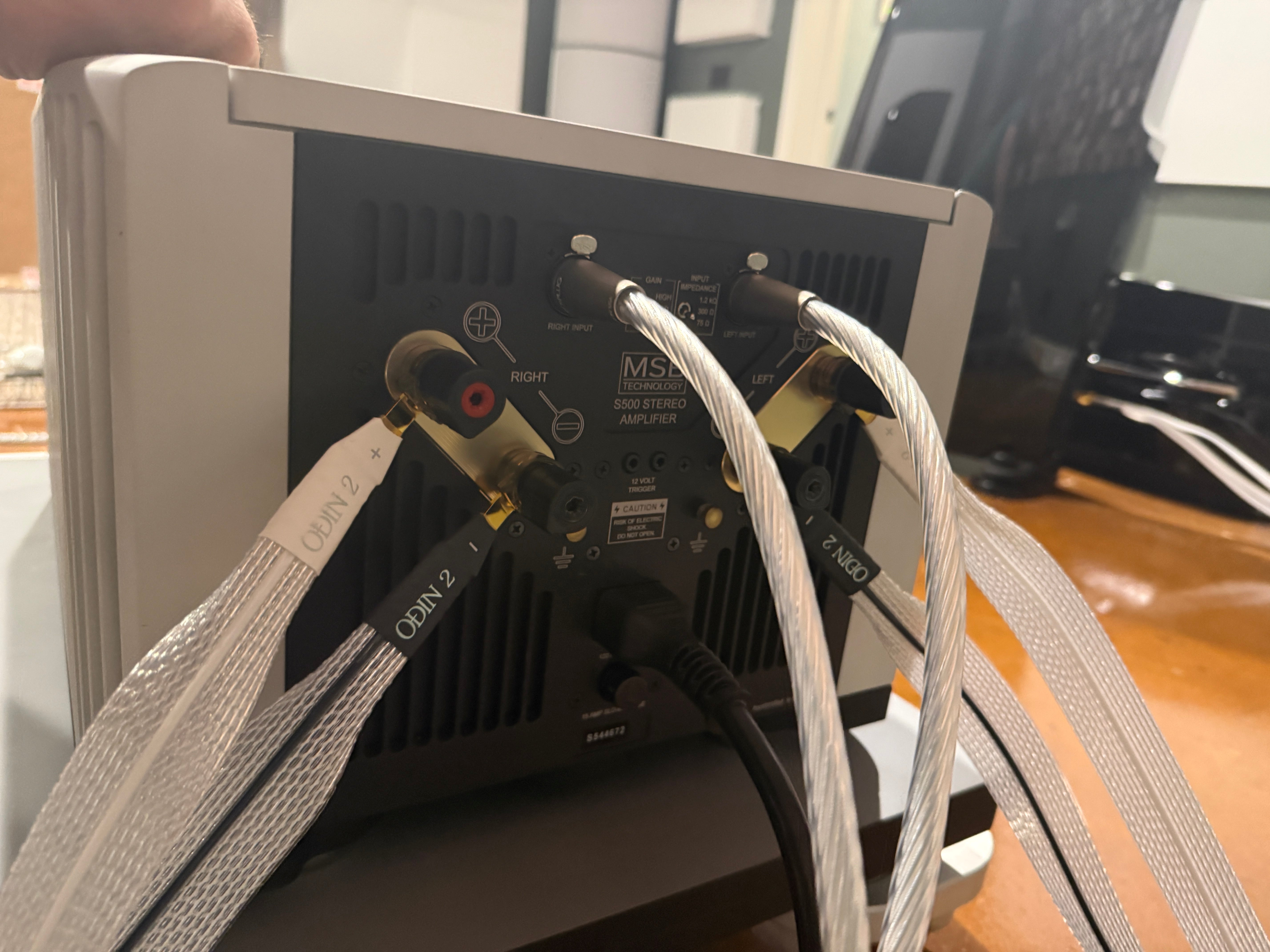

| Input | 2x XLR Input |
| Output | 1x Binding post set per channel |

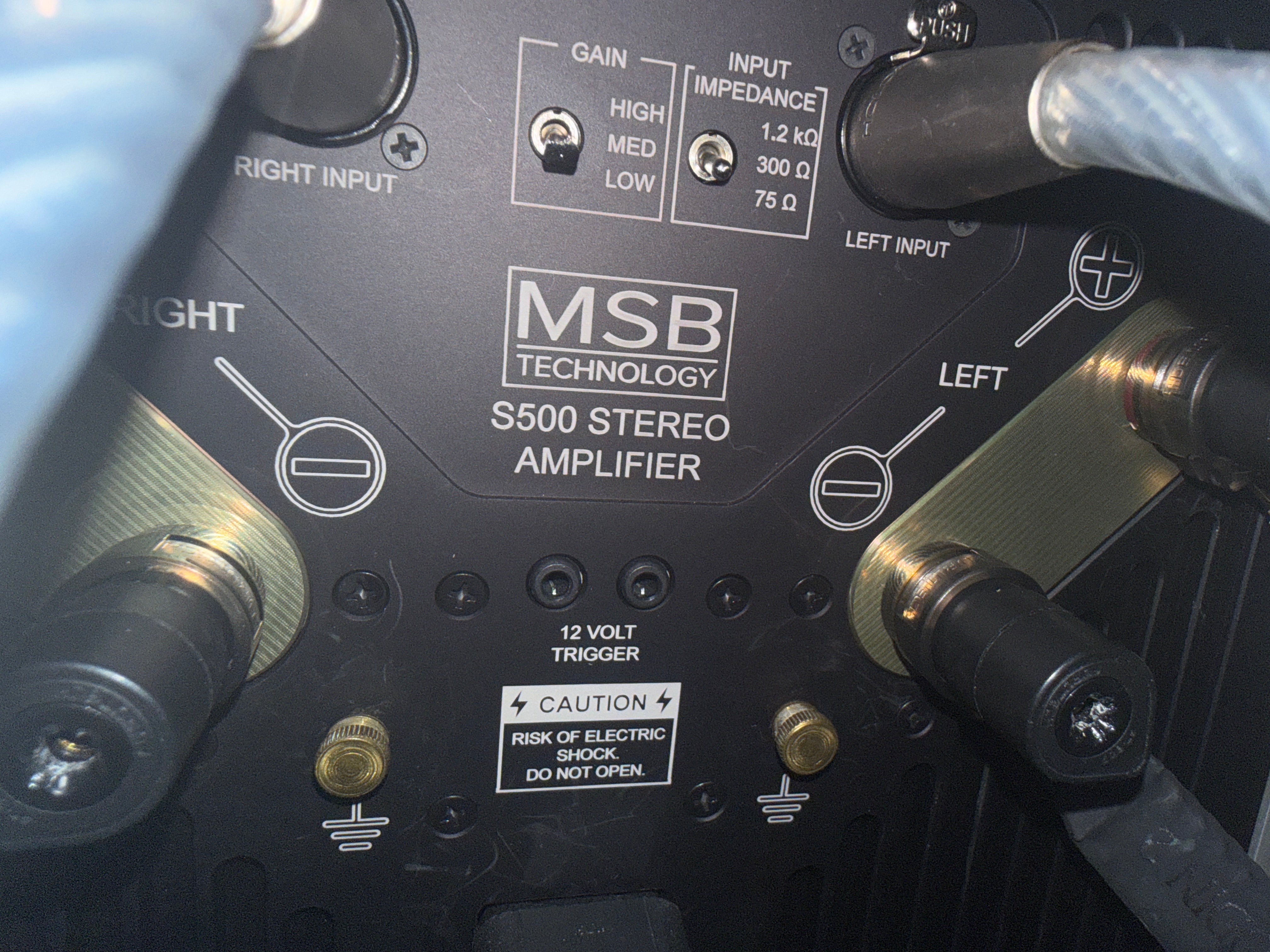

| Controls | Gain switch Input Impedance Switch On/Off Button Standby button Display Dimmer 12V Mode Switch 2x MSB 12V trigger port |
| Continuous Power Output (8Ω) < 1% distortion | 500 W |
| Continuous Power Output (4Ω) < 1% distortion | 900 W |
| Frequency Response (20 to 20kHz) | ±0.025dB |
| Signal to Noise (20 to 22kHz) | >134dB (>137dBA) |
| Equivalent Input Noise (22kHz BW) | 0.5μV |
| Crosstalk @ 2kHz | >110dB |
| Low Gain (75Ω input) | 14.8dB |
| Medium Gain (75Ω input) | 20.8dB |
| High Gain (75Ω input) | 26.8dB |
| Input Impedance (User Selectable) | 75Ω / 300Ω / 1.2kΩ |
| Chassis Dimensions | |
| Width: | 15 in (381 mm) |
| Depth: | 23.25 in (590 mm) |
| Height: | 10.5 in (267 mm) |
| Weight: | 135 lbs (61.25 kg) |
| Shipping Dimensions | |
| Width: | 23 in (585 mm) |
| Depth: | 33 in (839 mm) |
| Height: | 21 in (534 mm) |
| Weight: | 194 lbs (88 kg) |
| Included Accessories | |
| User Manual IEC C19 Power Cord |
|
