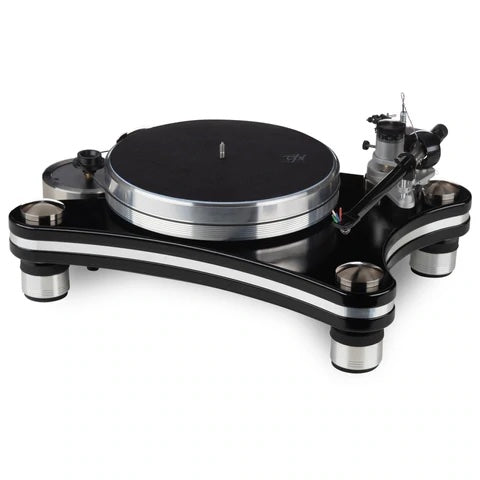

VPI Prime Signature 21
Black in stock and ready to ship
The Prime Signature is the next step up from the Prime, which took the world by storm 2 years ago during its initial release. It features an upgraded VPI 10” gimbal FATBOY!!. The chassis consists of an aluminum plate sandwiched between a composite material for improved dampening. Due to the additional weight of the table, we upgraded the feet to our Classic Signature feet. In addition, both the motor housing and all Delrin posts and armboards were upgraded to a heftier stainless steel.
The Turntable:
The vinyl wrapped MDF composite material chassis is bonded with a sandwiched aluminum plate to provide the ultimate resonance control and rejects feedback
The gimbal FATBOY Tonearm
The four Stainless Steel corner posts are designed for isolation and mechanical grounding
The 300 RPM, 24 pole, AC synchronous motor is capable of high torque and quiet operation. The motor is installed in a separate aluminum and steel machined assembly
The Inverted bearing features a hardened stainless steel shaft, 60 Rockwell chrome hardened ball, spinning in a phosphor bronze bushing and sits on a PEEK thrust disc. The belt side load is placed at the center of the spinning bearing for zero teeter-totter effects
The 20 pound 6061 aluminum platter has an accuracy of +/- .001” in a 39” circumference
The motor pulley has an accuracy of +/- .0005” when leaving factory Give us a call and speak with our analog tech Jeff Harris Moore Oklahoma
Specifications:
Wow and flutter: .03%
Speed Accuracy: .04%
Rumble: >82db down
Overall Dimensions 21 ⅜" x 15 ¾"
Footprint is 19 ½" x 13 ¾"
66 lbs weight
Available Upgrades:
Periphery Ring clamp for the ultimate in record warp reduction
Analog Drive System (ADS) for the utmost accuracy in motor speed and fine speed adjustments.
